Heavy Leading Company Limited is one of the most reliable manufacturers and suppliers of xcmg gr2153 motor grader in China. If you're going to wholesale bulk durable xcmg gr2153 motor grader made in China, welcome to get quotation from our factory. All customized products are with high quality and low price.

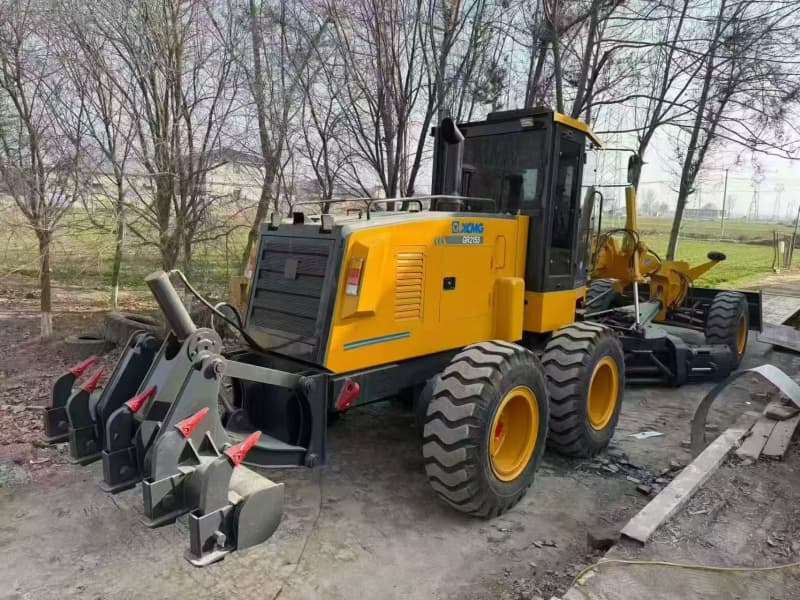

XCMG GR2153 Motor Grader Parameter
| Basic parameters | Overall dimension (standard) | 8970x2625x3420 | |
| Total weight (standard) | 16500 kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Space of front and rear axles | 6219 mm | ||
| Space of middle and rear wheels | 1538 mm | ||
| Performance | Forward velocity | 5,8,11,19,23,38km/h | |
| Parameters | Reverse speed | 5,11,23km/h | |
| Tractive effort f=0.75 | 85 kN | ||
| Maximum gradeability | 25% | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 20MPa | ||
| Transmission pressure | 1.3-1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±48° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | forwards15°, Reverse15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 400mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°-70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3965x610mm | ||
| Oil filling amount | Coolant | 50L | |
| Fuel tank | 280L | ||
| Engine | 24L | ||
| Transmission | 38L | ||
| Equilibrium box | 46L | ||
| Additional Coolant Capacity | 28L | ||
| Hydraulic oil | 110L | ||
Product Details

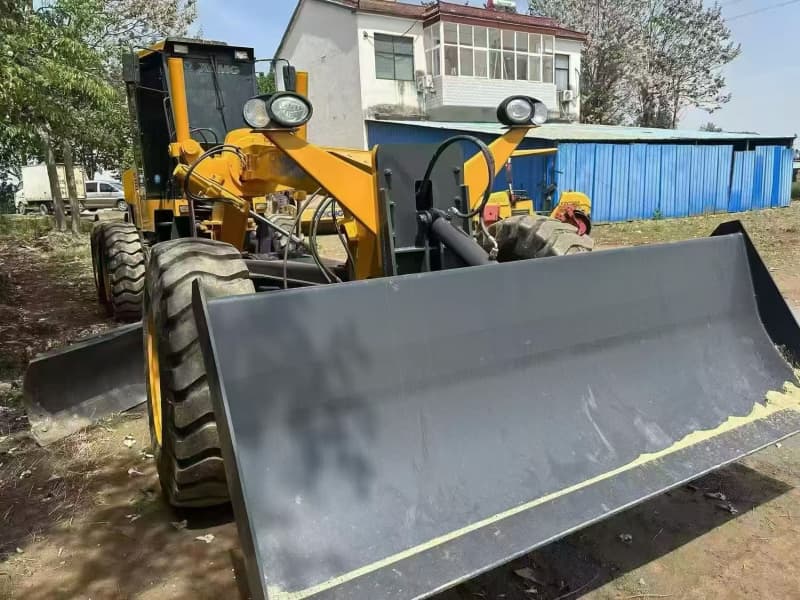

Front Dozer Blade
Features
Constructed from a large, high-strength, integrally welded curved steel plate.
Equipped with a replaceable, wear-resistant cutting edge at the bottom.
Lift and tilt angles are controlled by hydraulic cylinders mounted at the front of the frame.
Advantages
High operational efficiency: Allows for simultaneous dozing while the grader is in motion, eliminating the need for a separate bulldozer and offering multi-functionality.
Robust structure: The curved blade surface offers high impact resistance, effectively moving large volumes of loose soil and rock.
Wear-resistant and low-maintenance: Only the bottom cutting edge needs replacement when worn, reducing maintenance costs and extending the service life of the main blade assembly.

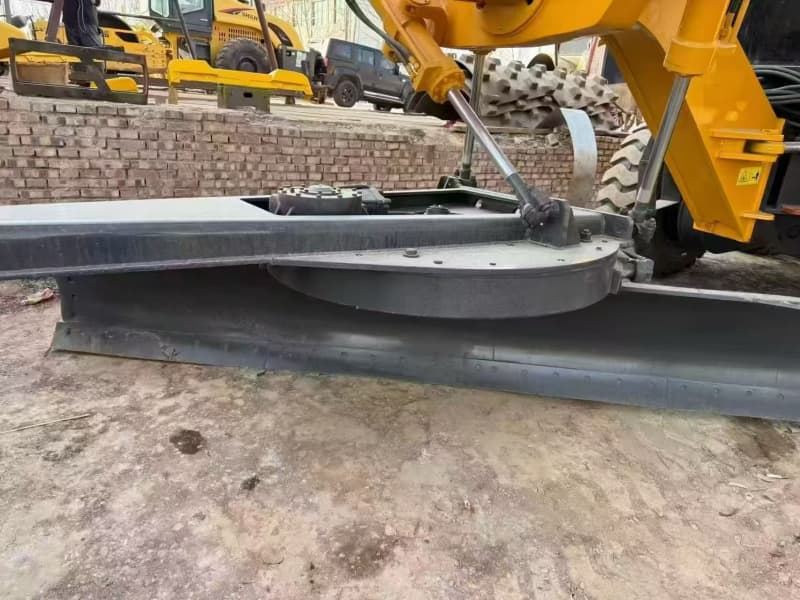

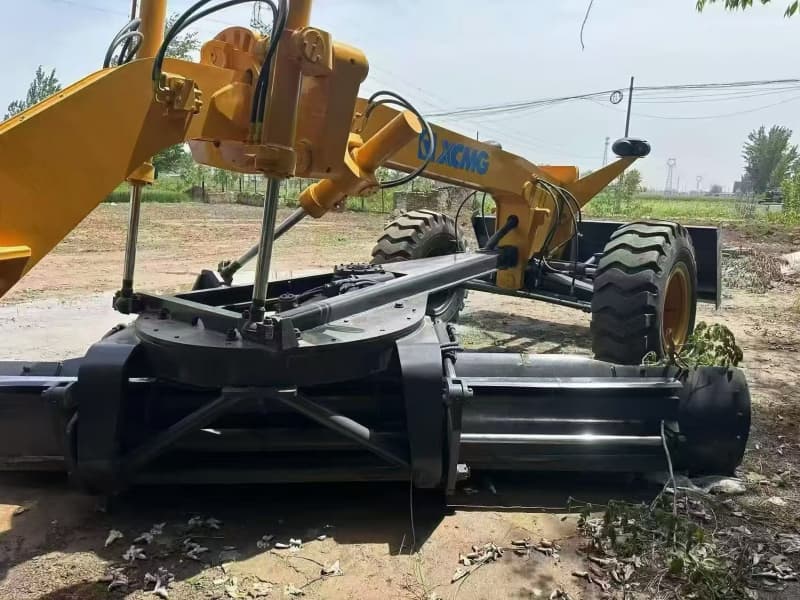

Rotation Gear Ring and Moldboard Assembly
Features
Rotation gear ring: Large cast-steel structure featuring an internal gear ring integrated with the raceway for a compact design.
Moldboard: Large, curved, high-strength, wear-resistant steel plate; the cutting edge is bolted on and replaceable.
Support: Large-diameter rollers or steel balls support the connection between the drawbar and the rotation ring.
Advantages
Operational flexibility: The moldboard offers 360° continuous rotation, enabling easy side-grading, ditching, and backfilling without frequent U-turns.
Exceptional strength: The large cast-steel gear ring resists impact and torsion, withstanding the massive lateral forces generated during heavy-duty grading.
Easy maintenance: Worn cutting edges can be quickly replaced by removing bolts, minimizing downtime and maintenance costs.

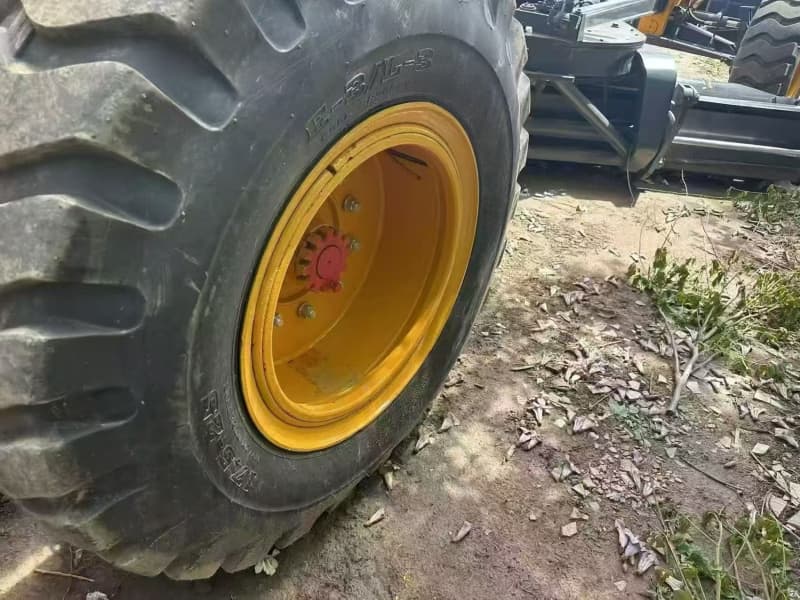

Construction Machinery Tires
Features
Specification: 17.5-25; features an E-3/L-3 deep-lug, block-pattern off-road tread.
Rating: 16PR (Ply Rating); robust carcass with reinforced sidewalls.
Advantages
Superior traction: Prevents slippage on soft surfaces like earth, sand, and gravel, ensuring consistent pulling power during grading operations.
Puncture and wear resistance: Withstands harsh job-site conditions-such as crushed rock and tree roots-significantly extending service life.
High load-bearing capacity: Withstands high pressure, the grader's substantial weight, and lateral forces during operation, ensuring safety.

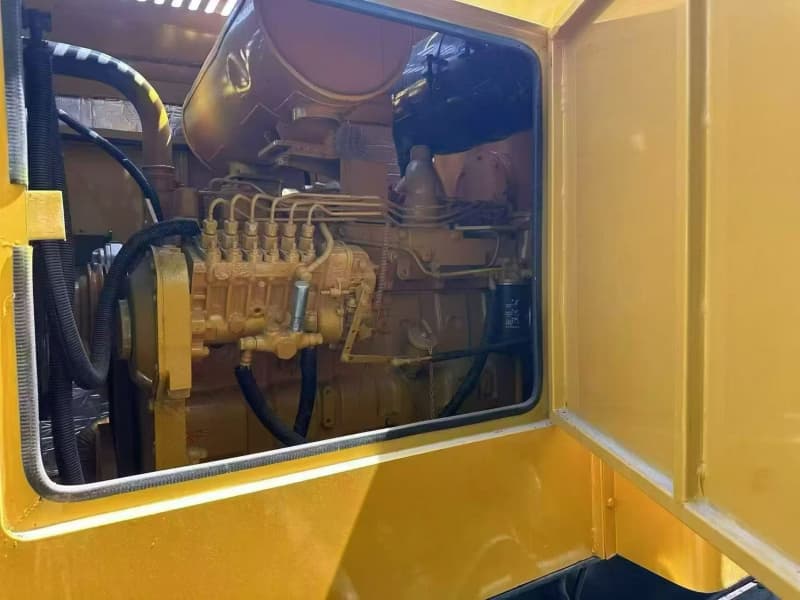

High-Pressure Engine Fuel Pump
Features
Utilizes a mechanical or electronically controlled unit pump design with a compact fuel line layout and robust sealing.
Equipped with an independent fuel filter for pre-filtration.
High-temperature and vibration resistant, capable of withstanding the harsh operating conditions of construction machinery.
Advantages
High injection pressure: Ensures excellent fuel atomization and more complete combustion, boosting engine power output.
High reliability: Rugged design, low failure rate, and ease of maintenance (simple filter element replacement).
Good fuel economy: Precise fuel quantity control reduces overall fuel consumption and extends engine service life.
Other Products Details
Products Application
The XCMG GR2153 Motor Grader is commonly used in the following scenarios:
1. Road and Airport Construction
Subgrade leveling and fine grading; paving and shaping of road base layers (such as stabilized soil layers).
2. Mining and Large-Scale Sites
Routine maintenance of haul roads in open-pit mines and leveling of waste dumps to ensure smooth traffic flow for transport vehicles.
3. Water Conservancy and Dam Projects
Leveling of dam crests, slope trimming (including inclined operations), and base leveling prior to channel backfilling and compaction.
4. Farmland and Land Consolidation
Large-scale farmland leveling, filling of gullies, and land improvement.
5. Winter Snow Removal (Auxiliary)
Can be used to clear snow from roads when equipped with a snow blade or front-mounted dozer blade.
Shipment Display
