Heavy Leading Company Limited is one of the most reliable manufacturers and suppliers of xcmg 70 ton truck crane in China. If you're going to wholesale bulk durable xcmg 70 ton truck crane made in China, welcome to get quotation from our factory. All customized products are with high quality and low price.
Products Parameter
| Description | Unit | Parameter value | |
| Max. total rated lifting capacity | t | 70 | |
| Min. rated working radius | m | 3 | |
| Turning radius at turntable tail | mm | 3550 | |
| Max. load moment | Base boom | KN.m | 2303 |
| Fully-extended boom | KN.m | 1129 | |
| Fully-extended boom + Jib | KN.m | 580.2 | |
| Hoist height | Base boom | m | 11.8 |
| Fully-extended boom | m | 44.2 | |
| Fully-extended boom + Jib | m | 59.4 | |
| Boom length | Base boom | m | 11.6 |
| Fully-extended boom | m | 44.5 | |
| Fully-extended boom + Jib | m | 59.5 | |
| Overall length | mm | 13900 | |
| Overall width | mm | 2800 | |
| Overall Height | mm | 3575 | |
| Wheel Base | mm | 2304+2075 | |
| Total vehicle mass in travel configuration | kg | 43000 (not including auxiliary counterweight of 1t) | |
| Engine Model | WD615.338 | ||
| Engine rated power | kw/(r/min) | 276/2200 | |
| Engine rated torque | N.m/(r/min) | 1500/1400 | |
| Engine rated rotational speed | r/min | 2100 | |
| Max. travel speed | km/h | 80 | |
Products Details

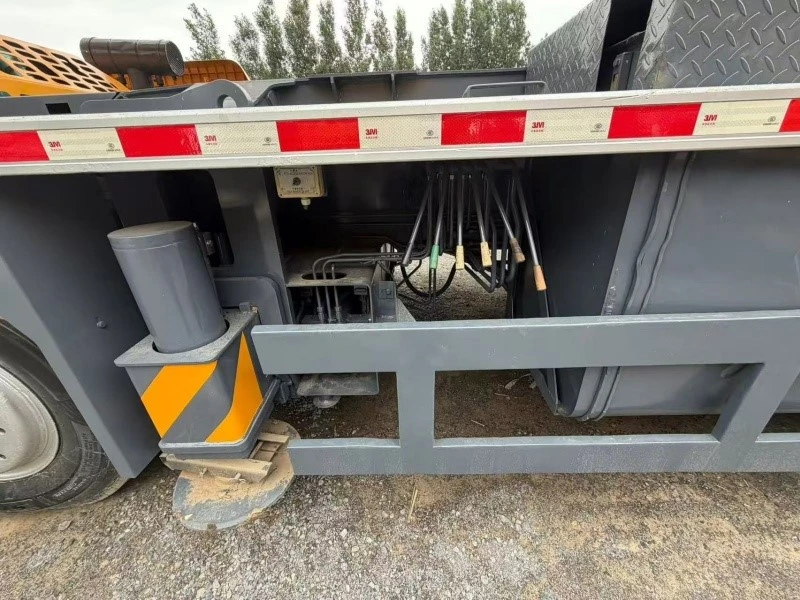

Hydraulic Outriggers + Side Guards
Features
Outriggers: Cylindrical vertical hydraulic cylinders featuring large, detachable load-bearing pads at the base and yellow-and-black warning markings.
Guards: Welded rectangular steel tube frames with an open-mesh design, positioned behind the outriggers to protect hydraulic lines and cables.
Advantages
Operational Safety: Large-diameter outriggers and wide pads effectively resist tipping and adapt to soft ground, ensuring stability for 70-ton class lifting operations.
Reliable Protection: Steel guards prevent flying debris from damaging high-pressure hydraulic hoses, while the open-mesh structure allows easy access for routine maintenance.

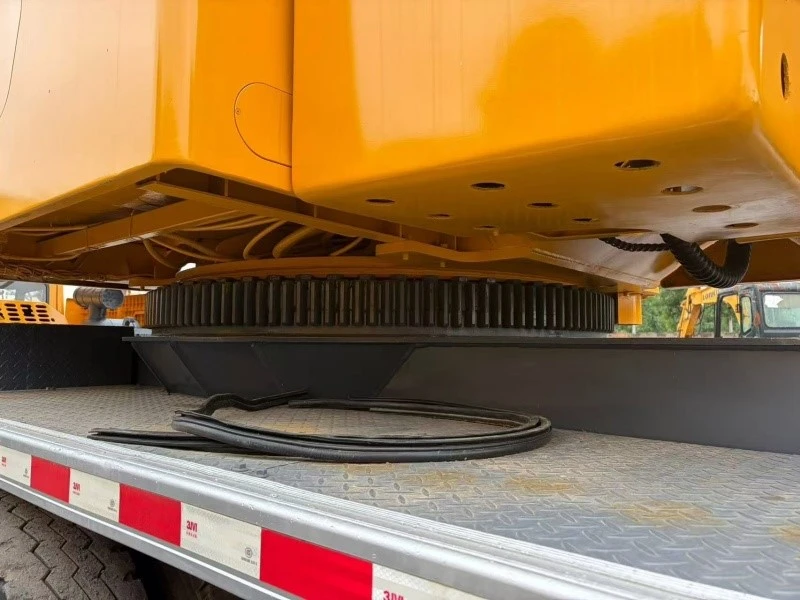

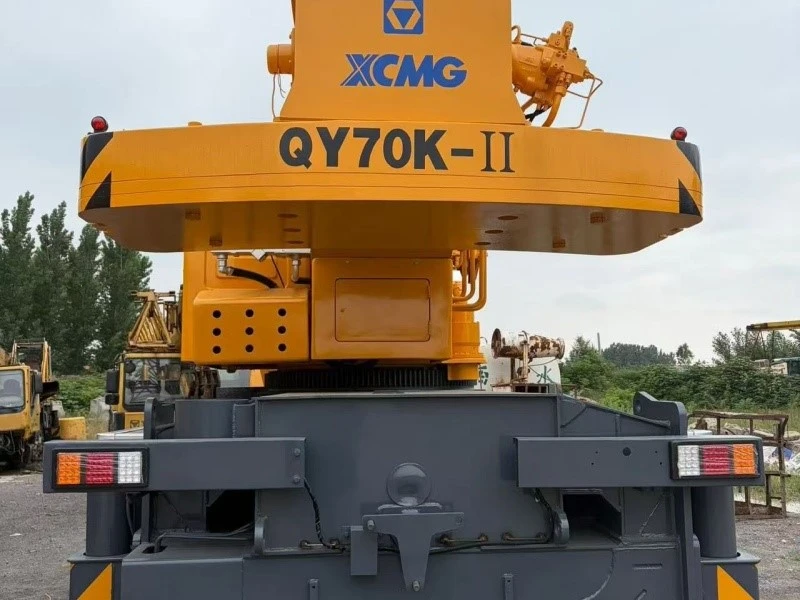

Slewing Bearing Assembly
Features
Large-scale annular raceway structure (internal or external gear type) with densely arranged gear teeth on the ring surface.
Rigidly connected between the yellow superstructure (turntable) and the gray chassis via high-strength bolts and the gear ring.
Equipped with a central rotary joint to facilitate the passage of hydraulic fluid and electrical signals between the upper and lower sections.
Advantages
High Load Capacity: Serving as the vehicle's core load-bearing pivot, it withstands the immense overturning moments and axial loads associated with 70-ton class lifting.
Smooth, Precise Slewing: High-precision gear ring combined with hydraulic drive ensures smooth starting and stopping and excellent inching control, guaranteeing accurate positioning during high-altitude lifts.
Impact Resistance and Durability: Heavy-duty raceway and embedded roller design withstand frequent heavy-load rotation in harsh operating conditions, ensuring a long service life.

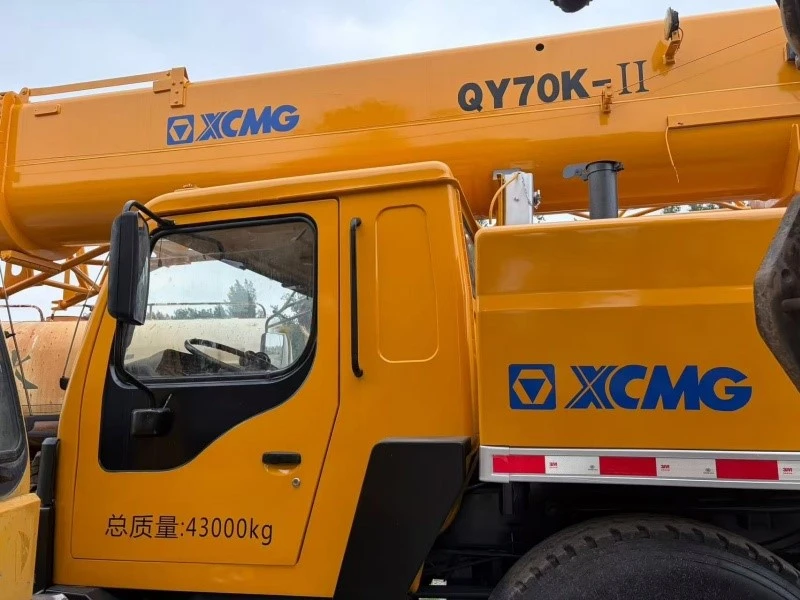

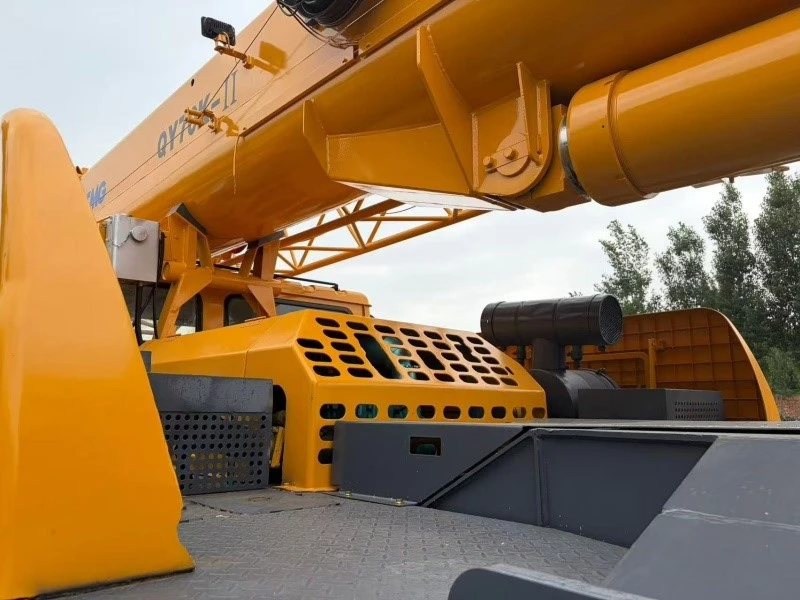

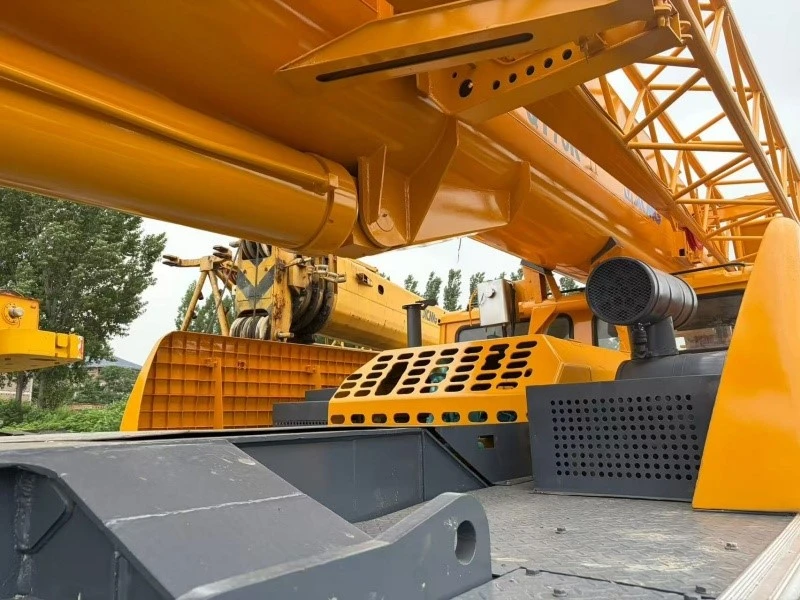

Superstructure (Turntable) and Main Boom Assembly
Features
Main Boom: Welded high-strength steel structure with a large-section U-shaped or hexagonal profile; features "QY70K-II" model branding on the side and a visible truss-style jib at the top.
Engine Enclosure: Yellow metal housing featuring dense mesh ventilation grilles on the sides and a cylindrical black air intake/exhaust unit at the rear.
Advantages
High Load Capacity: High-strength steel boom structure combined with high-thrust luffing cylinders meets the length and strength requirements for 70-ton class heavy-duty lifting.
Excellent Heat Dissipation: Large-area mesh enclosure design effectively dissipates heat from the engine and hydraulic system, preventing overheating during continuous, high-load operations. Compact Layout: The power system, hydraulics, and main boom are all housed on the upper superstructure, resulting in a compact overall structure that facilitates easy relocation between job sites.

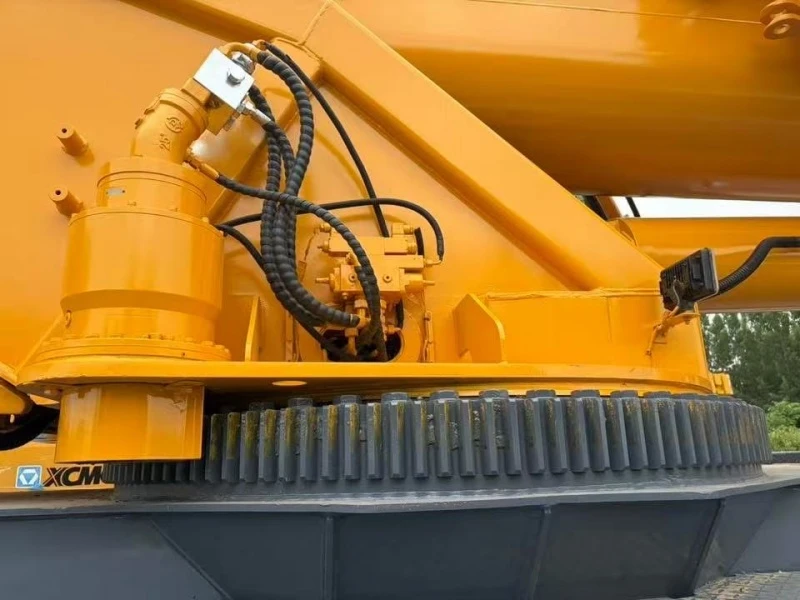

Slew Reducer + Hydraulic Motor
Features
Hydraulic Motor: Features a yellow cylindrical housing with inlet and outlet ports at the top, connected to hydraulic lines and fittings encased in black protective sleeves.
Reducer: Contains an internal planetary gear reduction mechanism; the output shaft features a pinion gear that meshes tightly with the large black external gear ring (slewing bearing) below.
The entire assembly is welded or flange-mounted to the underside of the upper turntable, ensuring a compact design.
Advantages
High Driving Torque: The planetary reduction mechanism converts high-speed/low-torque input into low-speed/high-torque output, effortlessly rotating the upper structure and its load - weighing tens of tons.
Reliable Braking: An integrated hydraulic brake valve allows for instant locking of the slewing angle, preventing unwanted rotation caused by slopes or wind and ensuring precise positioning.
Long Service Life: The enclosed gearbox design effectively keeps out dust and contaminants, significantly extending the unit's lifespan in harsh outdoor operating environments.
Other Products Details
Products Application
The XCMG 70-Ton Truck Crane is commonly used in the following scenarios:
1. Infrastructure and Municipal Engineering
Bridge erection, hoisting of precast components, and construction of viaduct piers.
Installation of steel columns and space frame structures for large industrial plants.
2. Petrochemical and Power Industries
On-site hoisting and positioning of chemical processing equipment (such as reaction vessels and towers).
Assembly and hoisting of large transformers for substations, as well as wind turbine tower sections and components.
3. Large-Scale Equipment Installation and Relocation
Loading, unloading, and repositioning of heavy industrial equipment - such as machine tools and presses - within factories.
Transfer and handling of large containers and heavy machinery at ports and terminals.
4. Emergency Rescue and Recovery
Righting and towing heavy vehicles (such as dump trucks or semi-trailers) involved in major accidents.
