Heavy Leading Company Limited is one of the most reliable manufacturers and suppliers of howo dump truck in China. If you're going to wholesale bulk durable howo dump truck made in China, welcome to get quotation from our factory. All customized products are with high quality and low price.

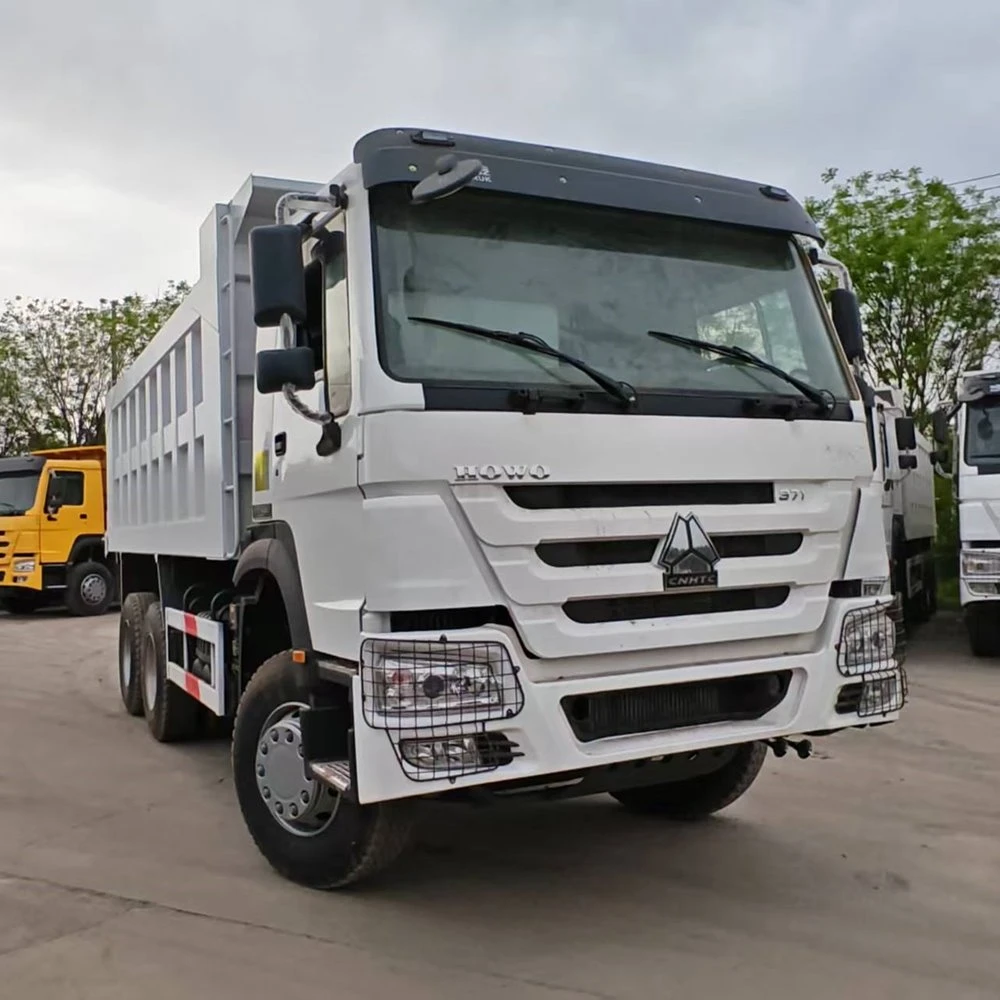

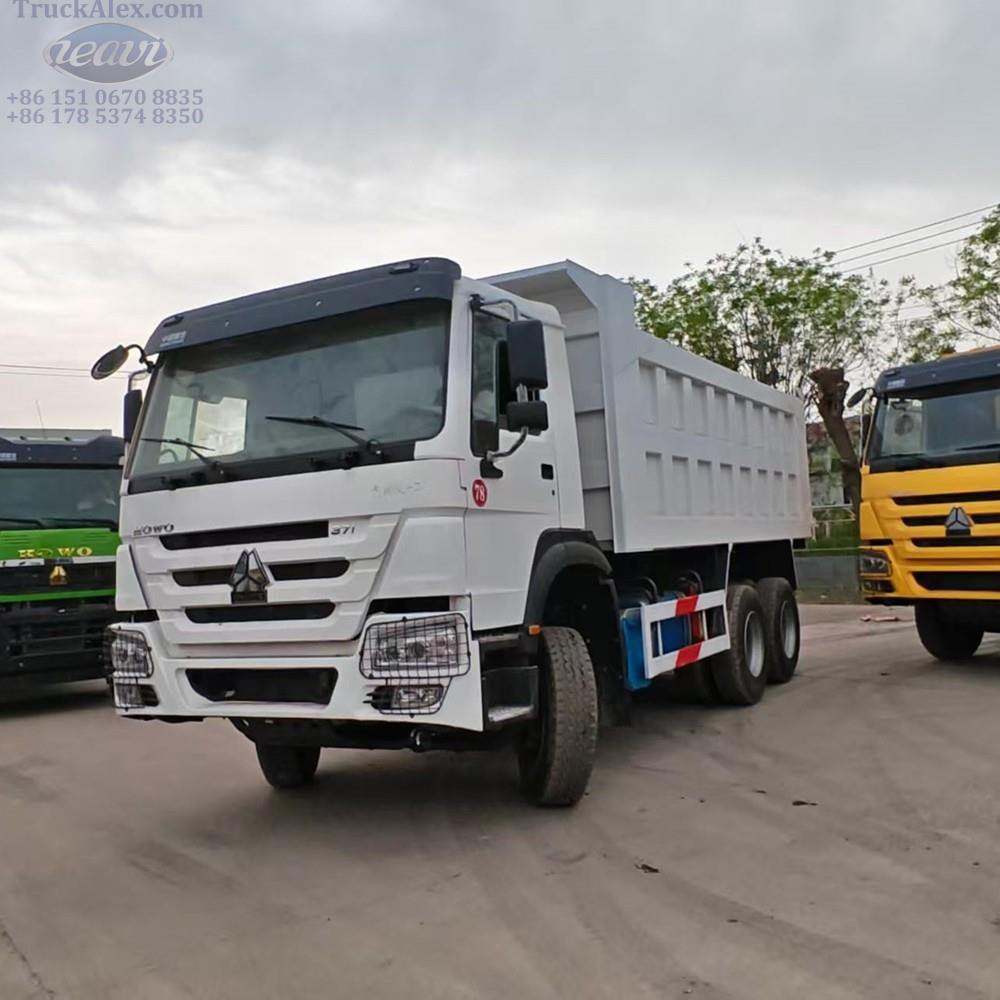

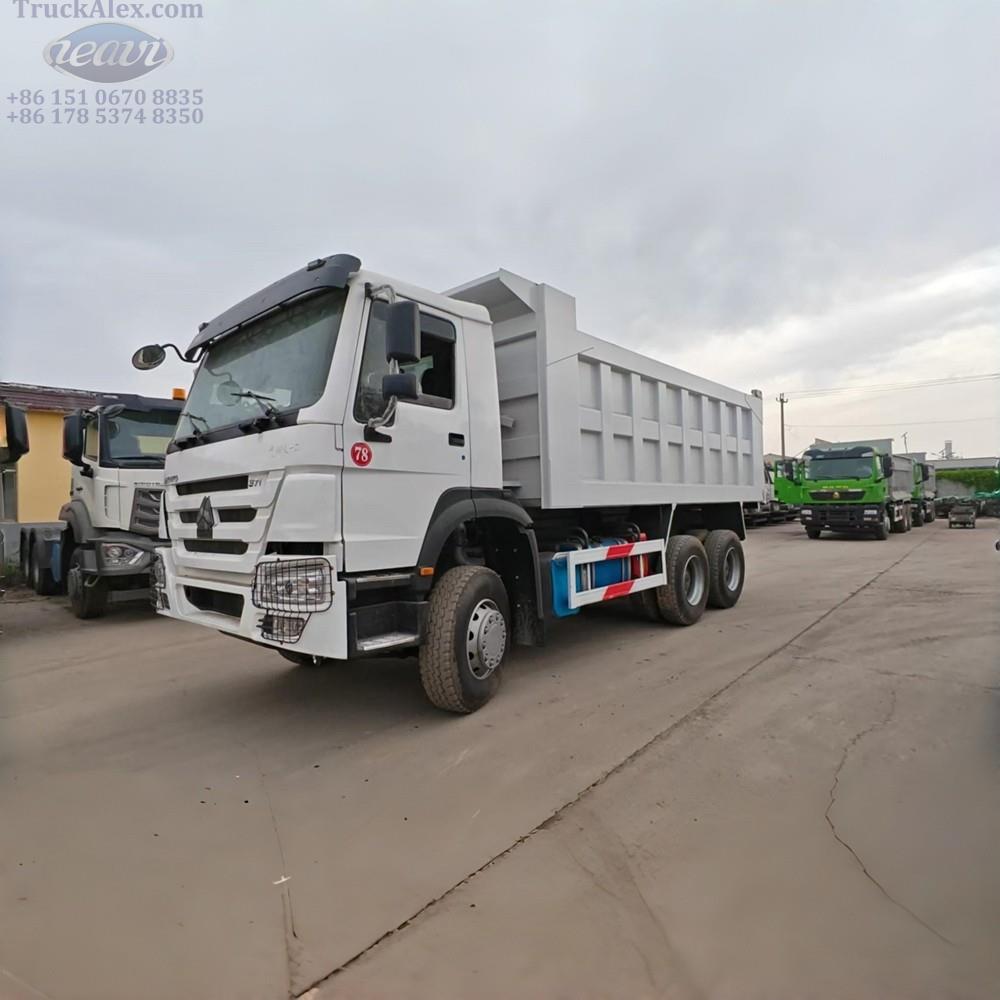

The HOWO dump truck is engineered to deliver unwavering reliability for operators managing bulk material transportation in harsh environments. Designed with a focus on durability and low operating costs, this tipper serves as a dependable solution for maximizing profit in mining and construction sectors. For procurement managers, its robust structure ensures high uptime even under continuous loading and unloading operations, making it a staple in heavy industries.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Drive Type | 6x4 (10 wheels) |
| Engine Power | 371HP, 375HP, or 400HP (Weichai) |
| Engine Model | WD615.96 (Diesel, direct injection) |
| Displacement | 9.726L (6-cylinder, Turbocharged) |
| Transmission | HW19710 (10-speed manual) |
| Load Capacity | 30,000kg - 40,000kg |
| Cargo Body | 5,800mm x 2,300mm x 1,500mm / 7,600mm x 2,500mm x 1,500mm |
| Tire Specifications | 12.00R20 Radial / 12R22.5 |
| Maximum Speed | 75 km/h |
| Fuel Tank | 300L - 400L |
| Hydraulic System | Front Lifting Style / Ventral Lift |
Product Features
Powerful Torque Output
The engine is calibrated to provide maximum torque at low RPM, ensuring the HOWO dump truck can pull heavy loads from standstill without stalling.
High-Strength Dump Body
Features a reinforced carriage structure with a floor thickness of 8mm and side thickness of 6mm, providing excellent resistance to impact from rocks and gravel.
Fuel Efficiency
The optimized combustion system ensures lower fuel consumption per ton, significantly reducing your operational expenses in the long run.
Robust Chassis
Equipped with heavy-duty reinforced axles and a dual-circuit compressed air brake system for enhanced safety and stability.
Vehicle Detail Advantages

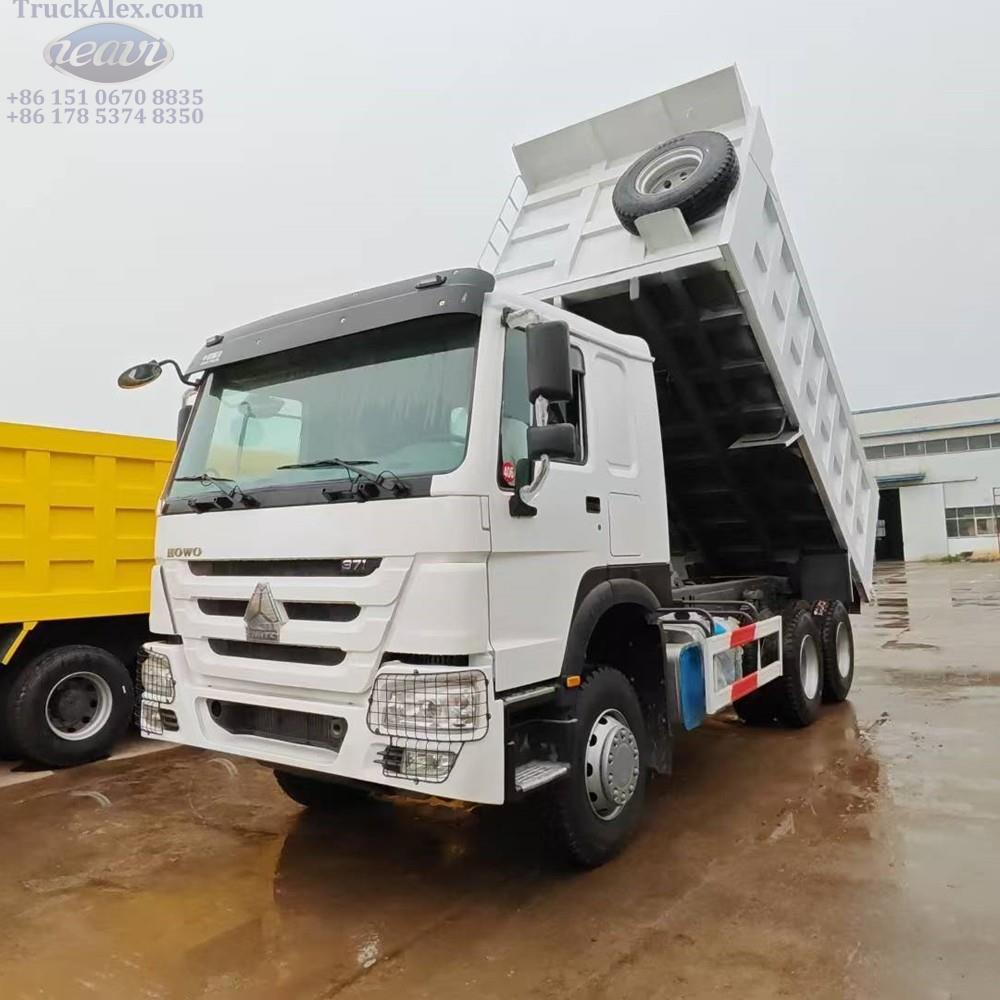

Reinforced Hydraulic Lifting System
The lifting mechanism is engineered with high-strength, thickened steel plates and a robust front-mounted hydraulic cylinder. This configuration provides a stable and powerful dumping angle, ensuring the HOWO 6x4 dump truck can handle even the heaviest, sticky materials without the risk of tipping or cylinder bending. High-quality sealing rings are integrated into the hydraulic joints to prevent hydraulic oil leakage, significantly reducing maintenance frequency and keeping your operation costs low.
01
Ruggedized Chassis & Heavy-Duty Suspension
The rear chassis features a multi-leaf spring suspension system combined with a reinforced sub-frame. This rugged setup is critical for absorbing severe shock loads when the vehicle is fully loaded and traveling over unpaved, rocky terrain. Additionally, the chassis is equipped with a high-mounted, expandable protective side guard and a standard fire extinguisher, ensuring the HOWO dump truck meets international safety standards and protects both the driver and critical components like the fuel tank from accidental impacts.
02
High-Performance Powertrain & Thermal Protection
Under the hood, the engine compartment is meticulously organized to facilitate heat dissipation. The turbocharger and exhaust system are wrapped with specialized high-temperature resistant insulation materials, protecting surrounding wires and hoses from heat damage and extending the lifespan of the engine bay. The layout of the air filter and oil pipelines is optimized for easier access, allowing your local mechanics to perform routine maintenance or repairs quickly, thereby maximizing vehicle uptime.
03
Ergonomic and Protective Cabin Design
The driver's cab is designed with a high level of operator comfort to reduce fatigue during long shifts. It features ergonomically designed seats, a clear dashboard layout, and a powerful air conditioning system to handle extreme climates. Furthermore, the cab is equipped with a rear-view window and large side mirrors to eliminate blind spots, ensuring drivers have a clear view of the dump bed and the surrounding environment during reversing or unloading. This thoughtful layout proves that the 6x4 dump truck is built to keep your best operators productive and safe over the long haul.
04
Application Fields
This tipper is mainly used in construction, mining, and infrastructure projects. It is particularly effective for transporting sand, crushed stone, and ore on unpaved roads. Its 6x4 drive configuration provides adequate traction on loose soil, and the vehicle is highly adaptable for use in agricultural bulk haulage.
Company Strength & Service
Our partnership involves professional factories in China that adhere to strict ISO9001 standards, with the capacity to produce 10 units per month. We offer comprehensive support including video technical guidance and full warranty coverage for engine and hydraulic systems . For a smooth export process, we provide flexible payment options like T/T and L/C, and we arrange shipping via RO-RO or flat rack.
FAQ
Q: Can I choose between Left-Hand Drive (LHD) and Right-Hand Drive (RHD)?
A: Yes, the vehicle can be customized to your specific market requirements .
Q: What are the payment terms?
A: We typically request a 30% deposit, with the remaining balance due before loading and after Bill of Lading .
Q: Do you offer a warranty?
A: Yes, we provide a 1-year warranty for the engine, hydraulic pump, and transmission .
Q: What is the shipping time?
A: Shipping arrangements usually require 7 working days after receiving your deposit .
Q: Is air conditioning standard?
A: Yes, the vehicle is equipped with air conditioning for operator comfort .
Q: What is the emission standard?
A: Available in Euro 2, Euro 3, Euro 4, and Euro 5 standards to suit different regional regulations .
Q: Does the price include a spare tire?
A: Yes, one spare tire is included with the standard configuration .
Q: Can I customize the cargo box volume?
A: Yes, we can adjust the cargo box dimensions to fit your specific transportation needs.
